Crankcase Cover Removal

Remove Pillion Step
See Pillion Step Removal

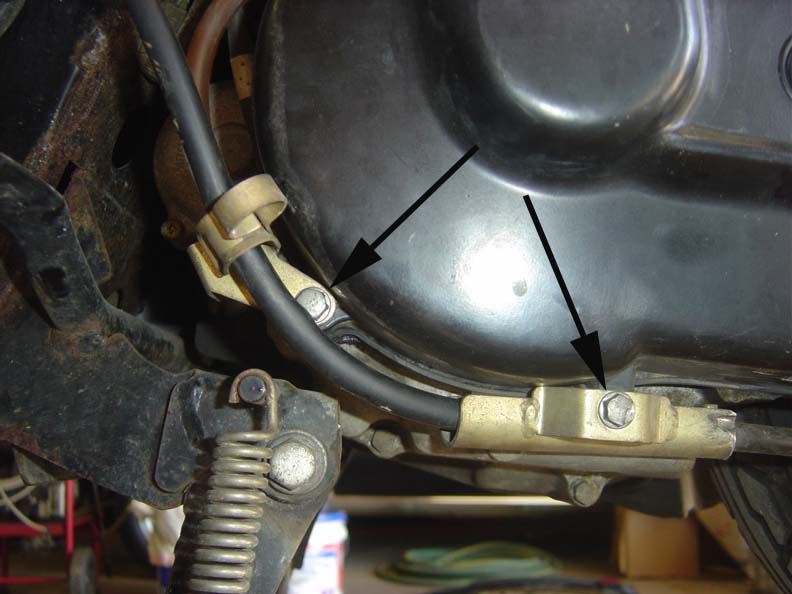

Remove Brake cable brackets with 8mm socket

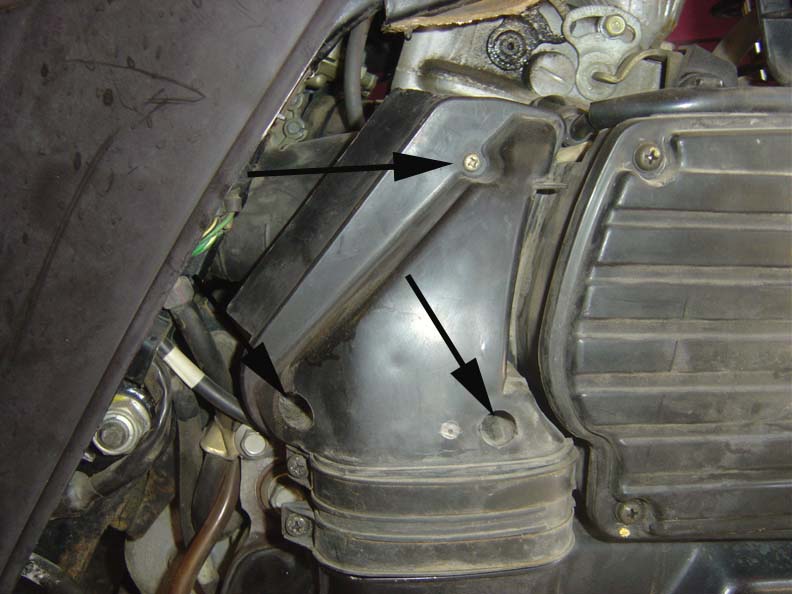

Remove 3 Phillips head screws from drive belt air cleaner cover
You can leave the cover attached to the case cover

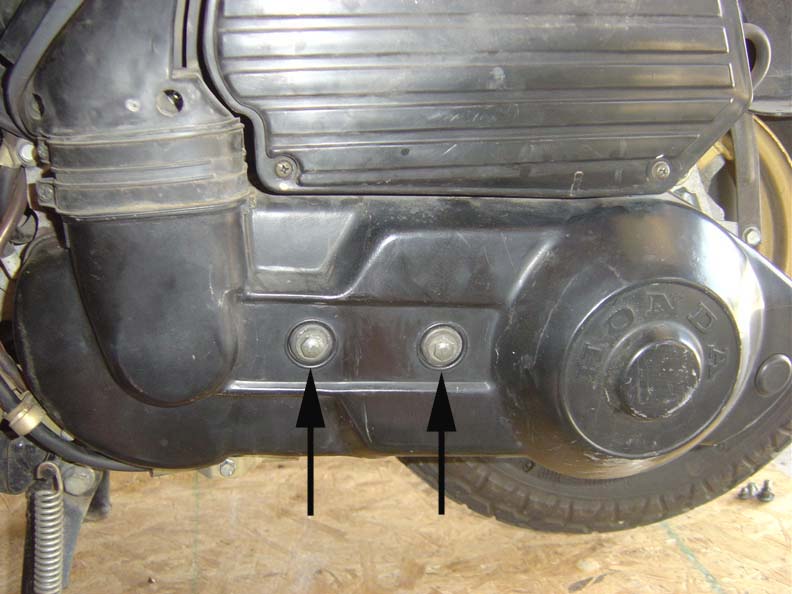

Remove 2 cover bolts with 10mm socket

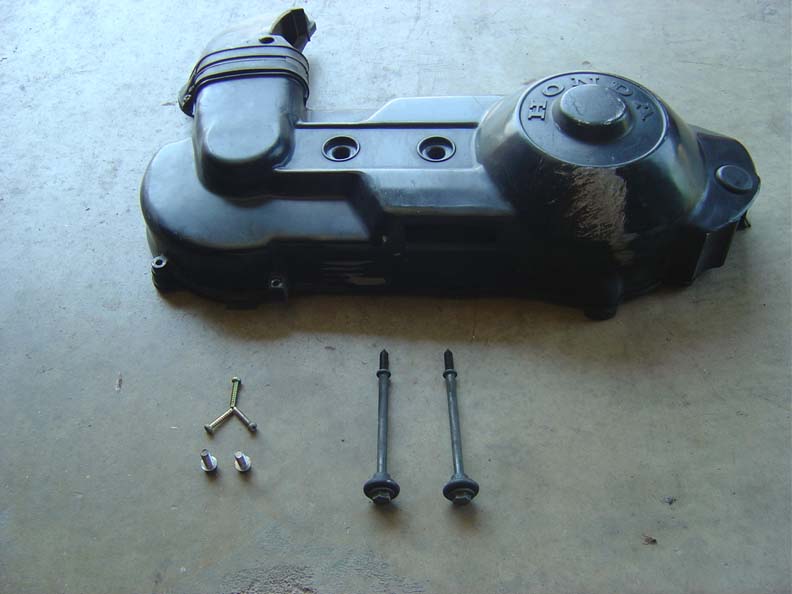

Here is what you will have

Reverse to install

There is a rubber seal around the inner perimeter that is not pictured
(Will get one soon)
You will need to make sure it does not fall off during installation

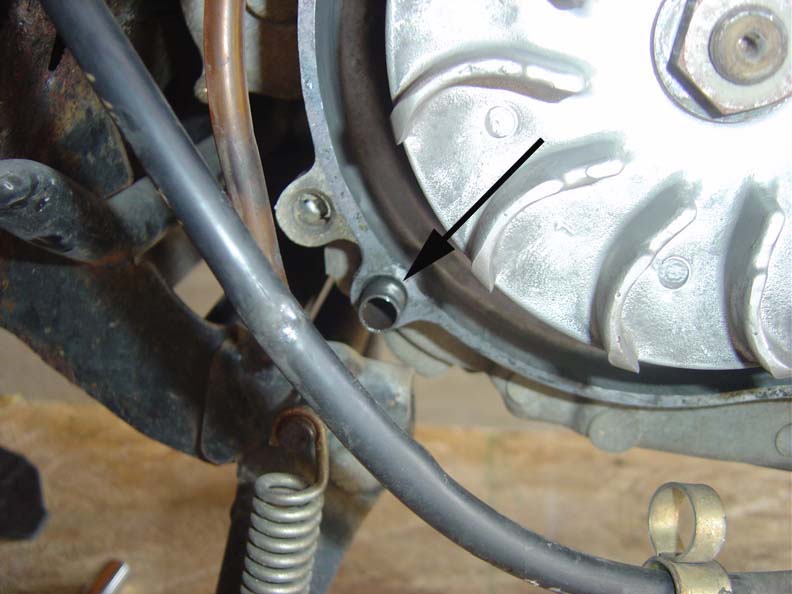

There are 2 location dowel pins to hold the cover straight
Front lower

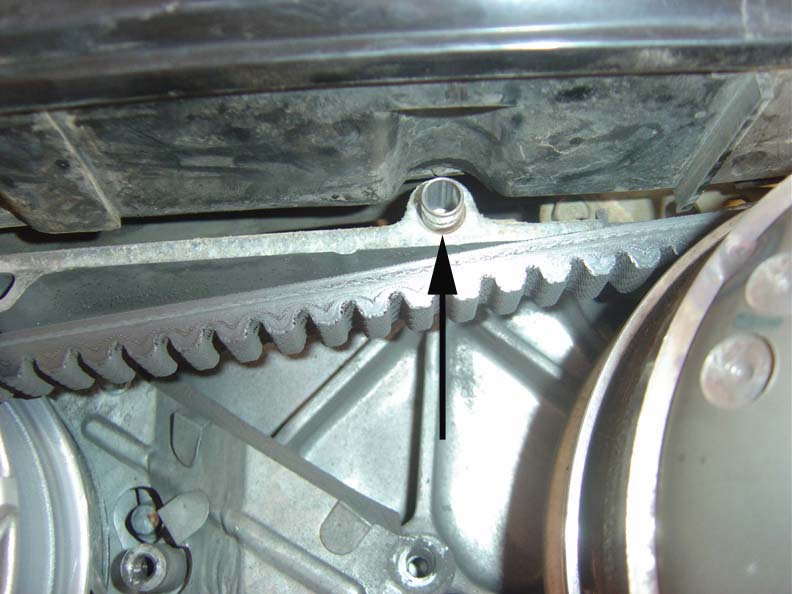

Middle top

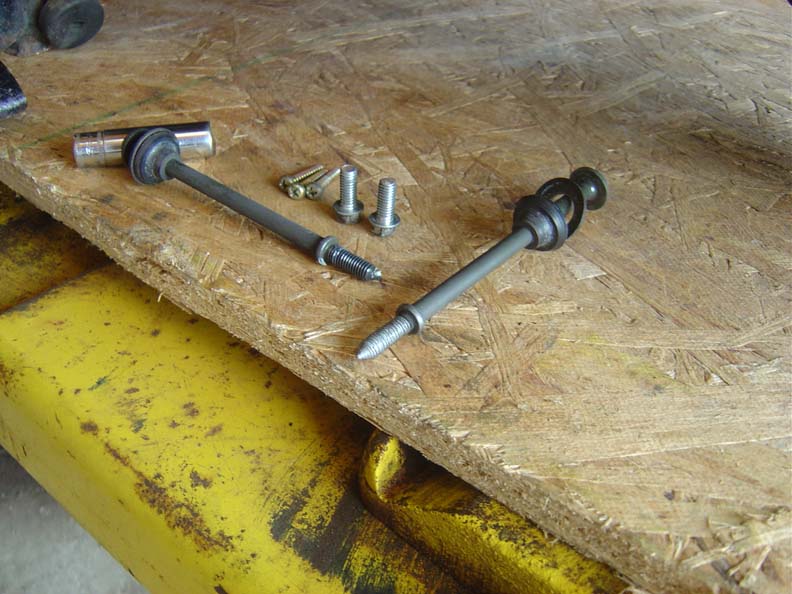

As always, anti seize is good for threads going into aluminum
