Moveable Drive Face Service

Remove Moveable Drive Face
See Moveable Drive Face Removal

Remove 3 screws with a 8mm socket

Carefully pry cover off, it is held on only by an o-ring

Pull ramp plate out

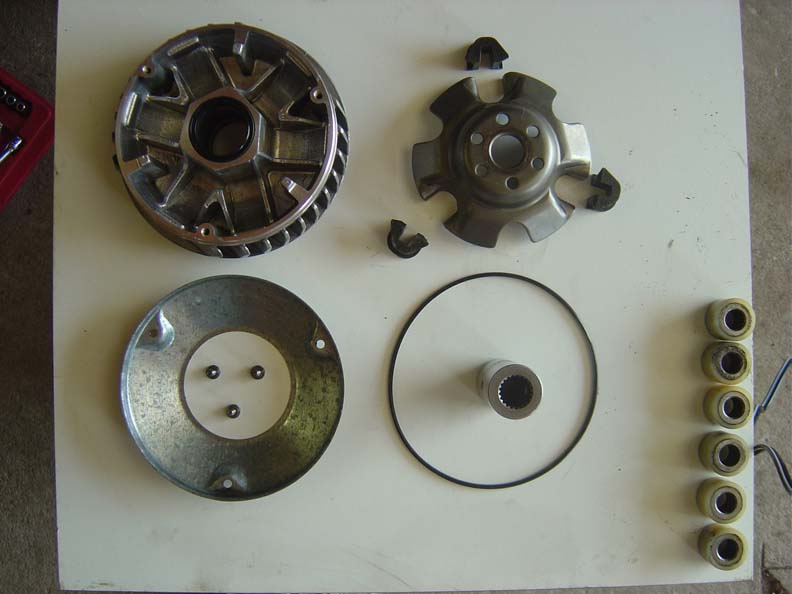

Clean all related parts

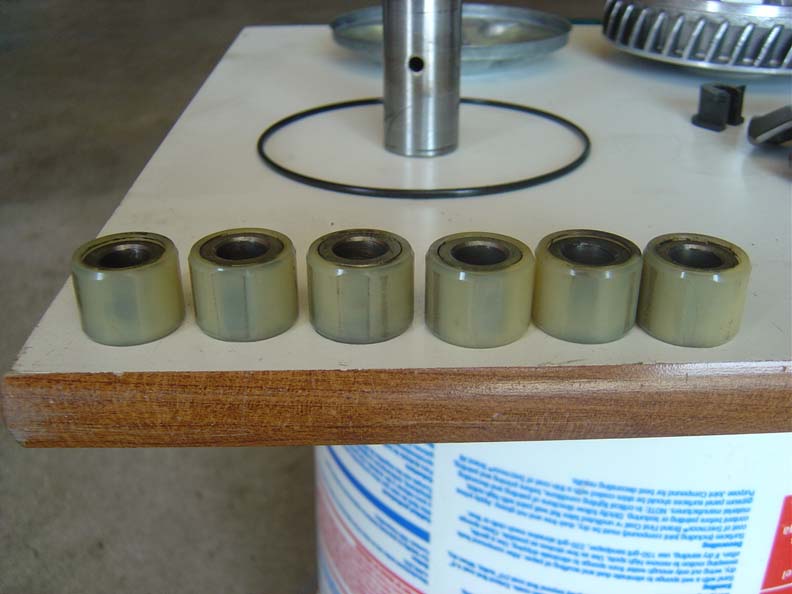

Inspect the Rollers for flat spots

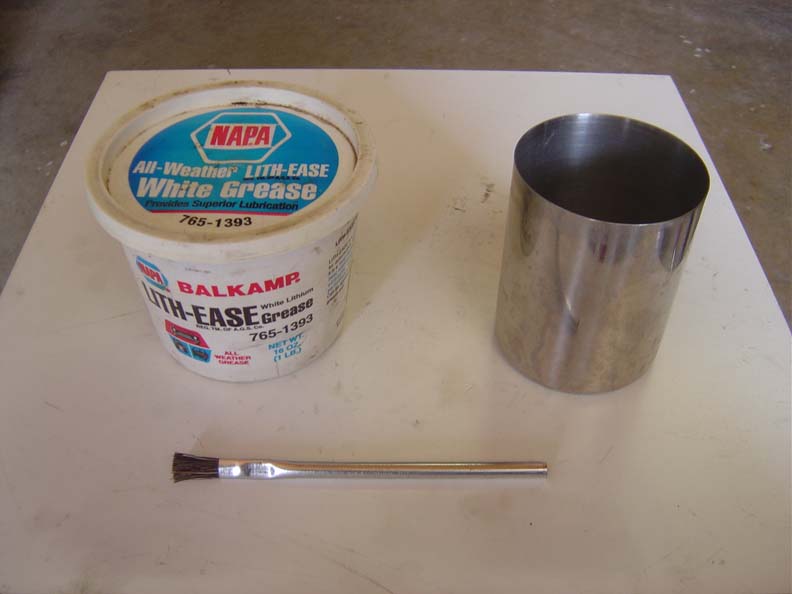

This is what I used for assembly, the cup is to hold it upright

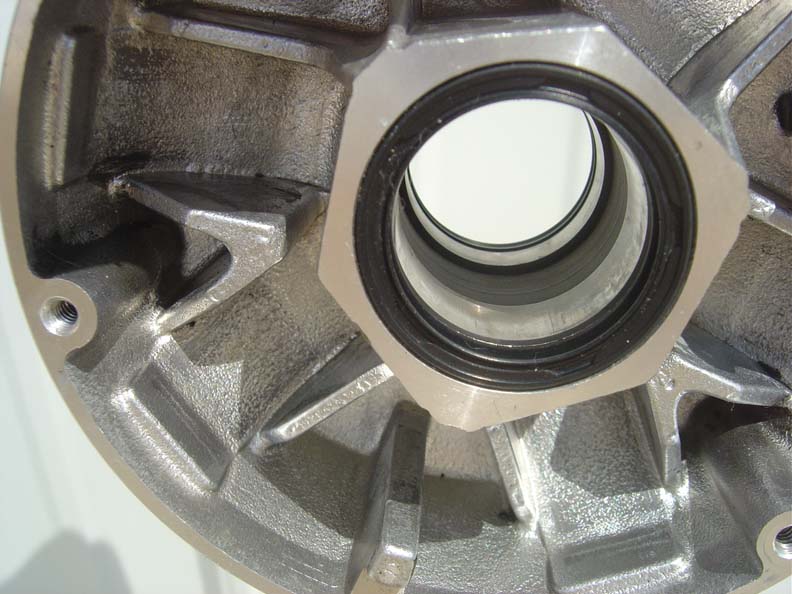

Make sure the inside is clean also

This has to be filled with a high temp grease

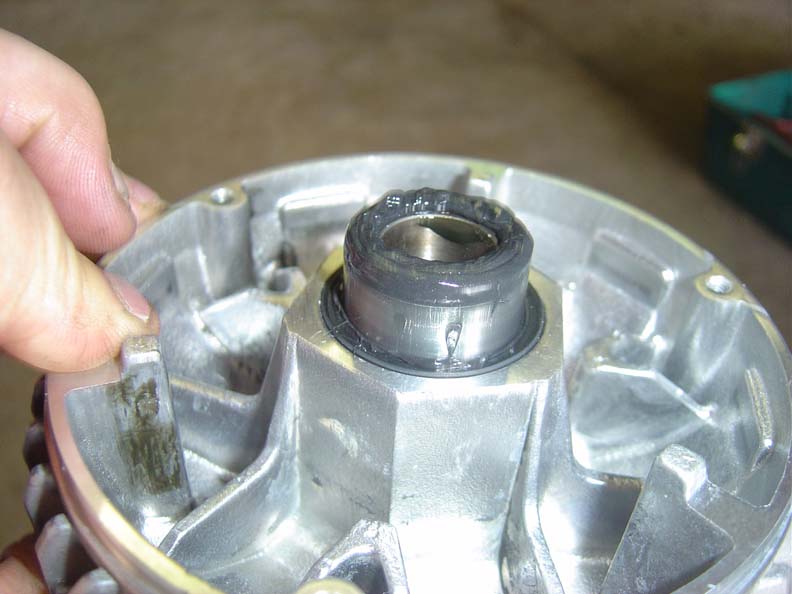

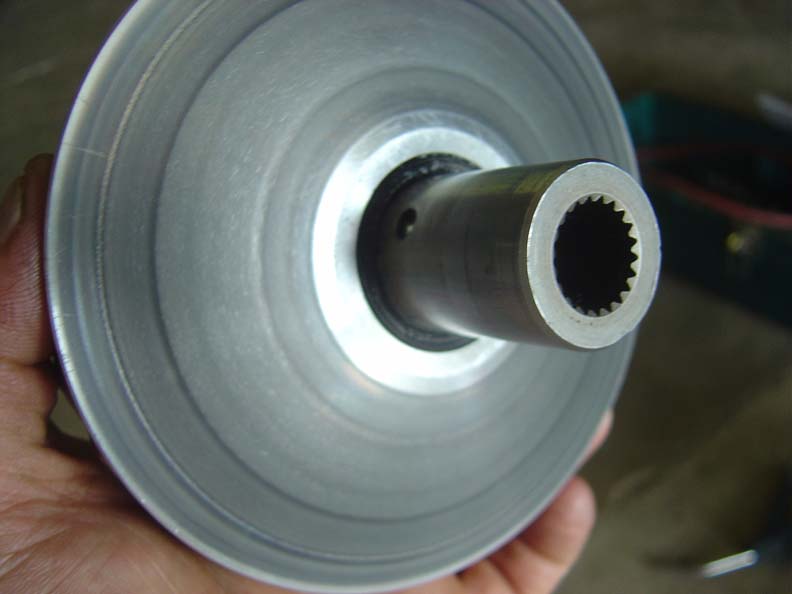

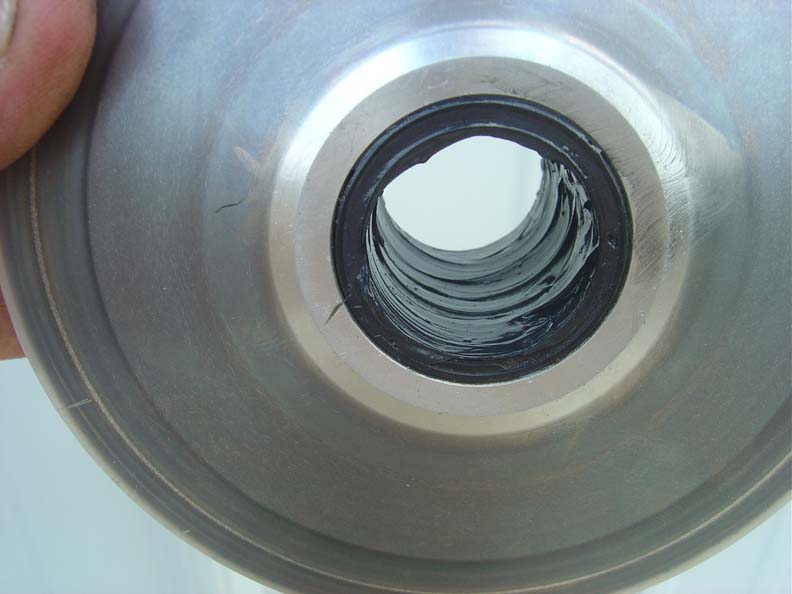

Insert the boss into the hole with spines toward the face

Wipe off excess grease

This is what the rollers look like before grease

This is where I set it on the metal cup

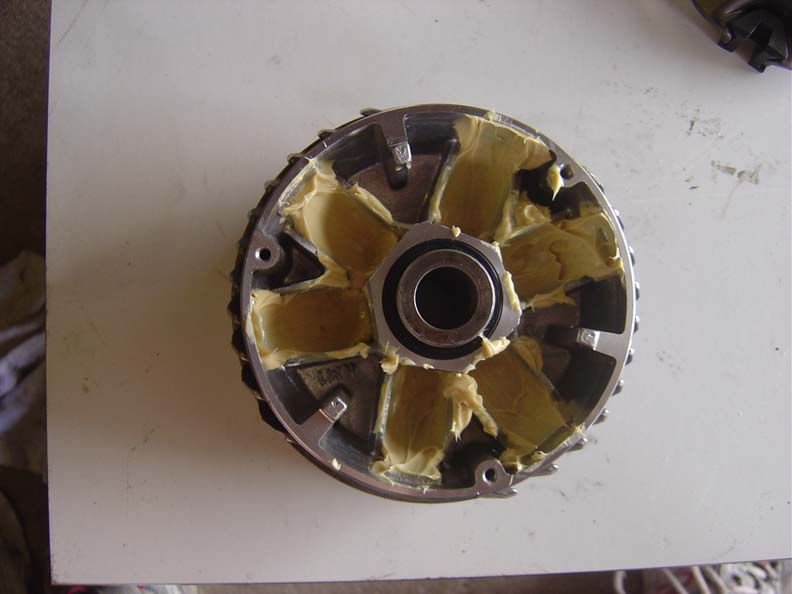

Apply grease to roller area

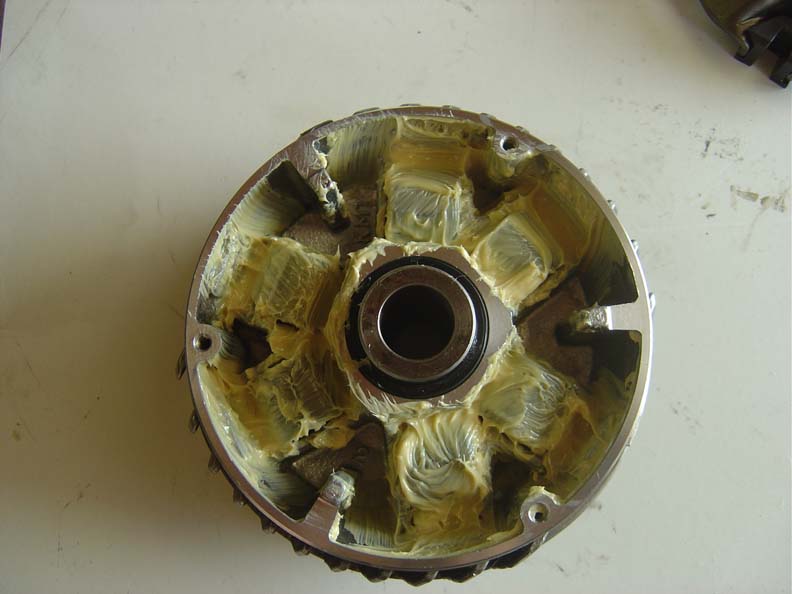

Install rollers and grease over

Make sure the slide pieces are in correctly

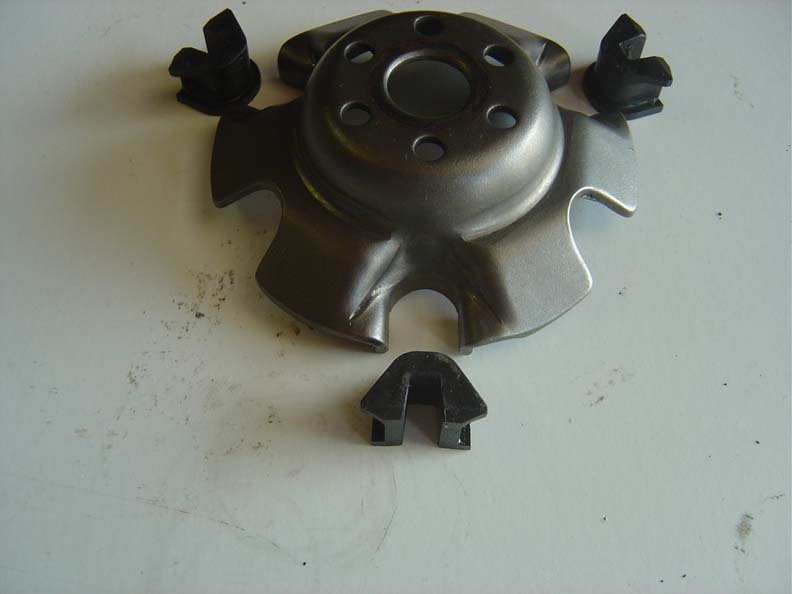

Notice one side is flat and the other has wings

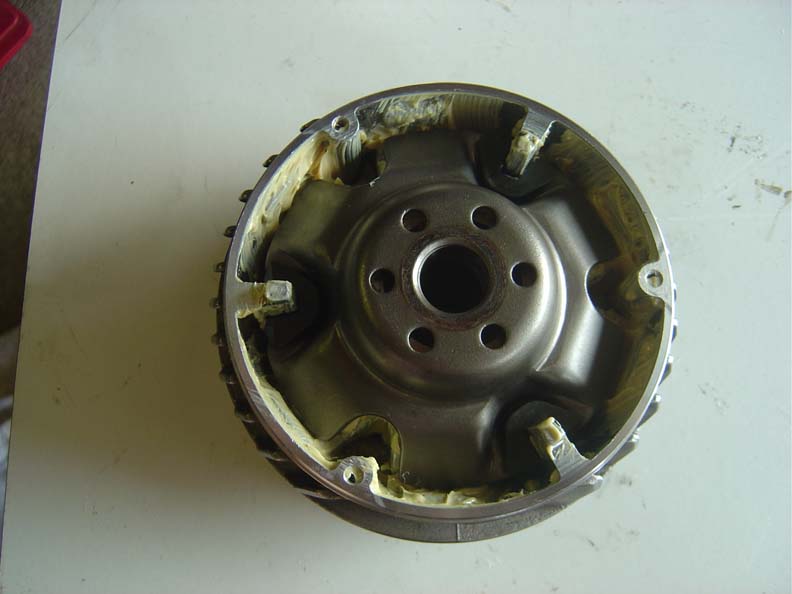

Install the ramp plate

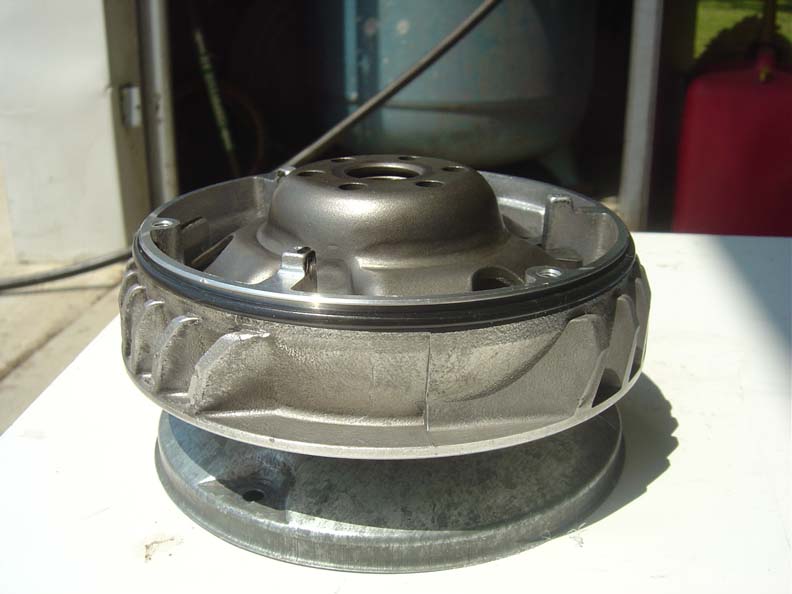

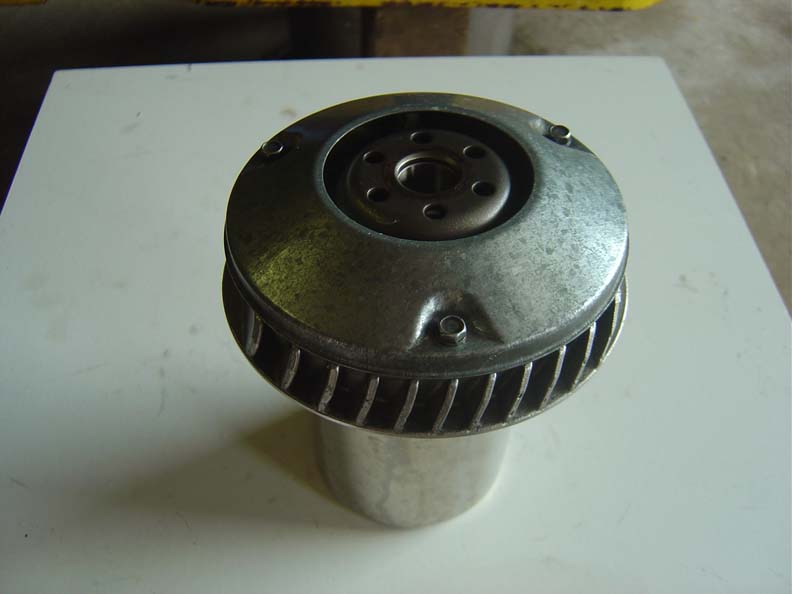

Grease o-ring, Install cover

Handle with care before installation
